Seven Frequency Positioning Antenna

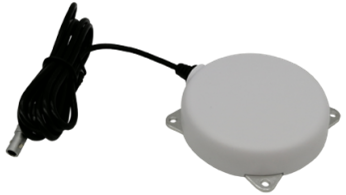

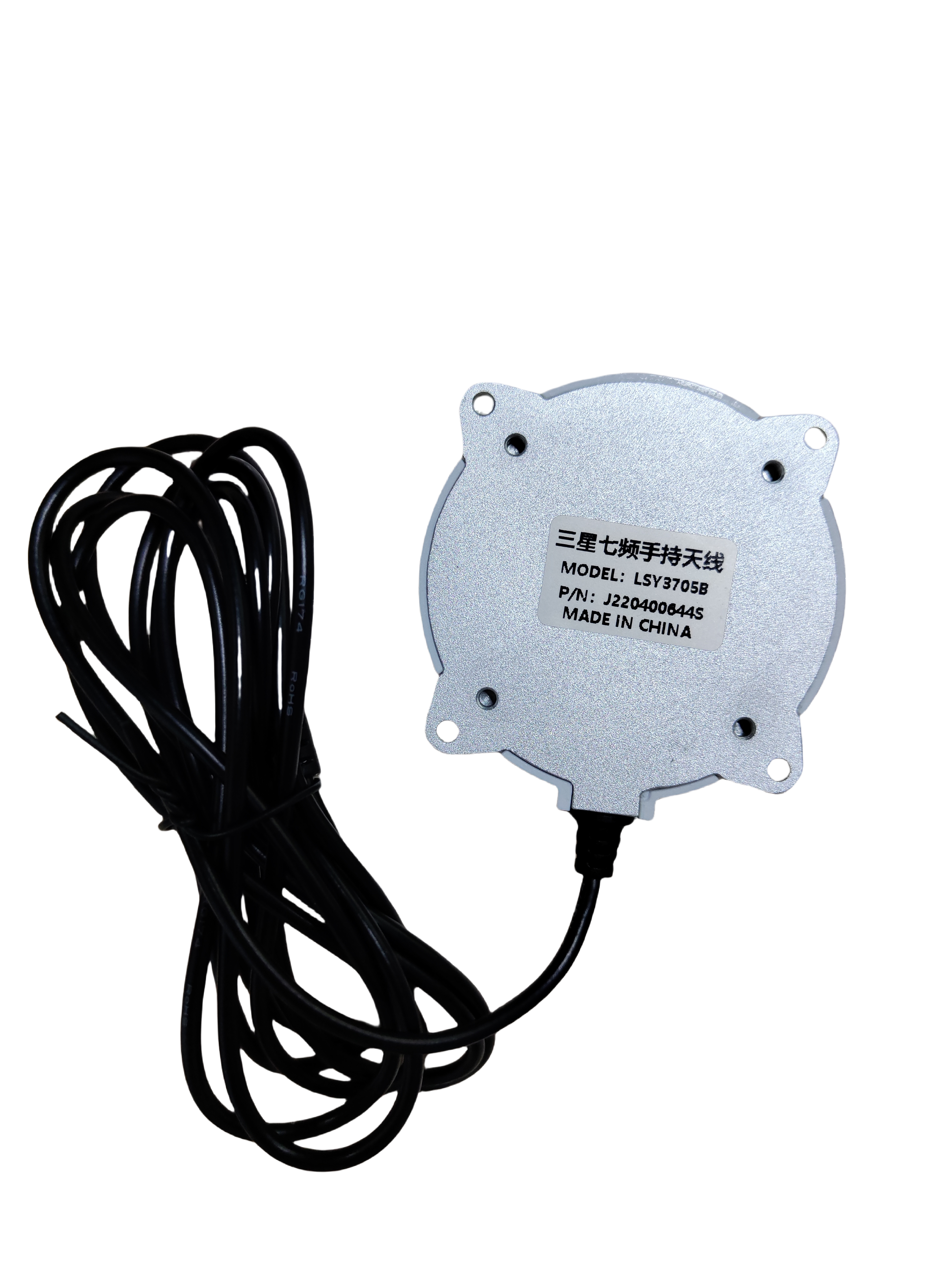

SCE005A
SCE005A is a Seven Frequency positioning antenna, the antenna has the characteristics of high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the needs of users. Can be used with a variety of receivers, widely used inCar navigation, personnel positioning and other directions.
|
Specifications |
|
|
Frequency Range Frequency Range(MHz) |
GPS L1/L2 GLONASS L1/L2 BD B1/B2/B3 |
|
the largestgain Gain (dBI) |
5.5 |
|
Antenna Axial RatioAntennaAR(dB) |
≤3.0 |
|
phase center errorPhase center error(mm) |
±2 |
|
polarization mode |
right circular polarization Right-hand circular polarization |
|
Port Impedance PortImpedance |
50 Ω |
|
LNAGain Gain(dB) |
40±2 |
|
noise coefficientNoise figure(dB) |
≤1.8 |
|
Outputvoltage standing wave ratio VSWR |
≤2.0 |
|
working voltageOperating voltage(V) |
3.3-15 DC |
|
working currentOperating current |
≤ 45mA |
|
Connector ModelConnectortype |
LEMO head (1.8m long) |
|
Antenna DimensionsAntenna size(mm) |
Φ58 × 14.5 (excluding flange and cable assembly) |
|
Antenna WeightAntenna weight(g) |
≤ 100 |
|
colorColour |
White |
|
waterproof grade |
IP68 |
|
Relative Humidity Relative Humidity |
95% |
|
working temperatureOperatingtemperature(℃) |
-40-+70 |
|
Storage TemperatureStoragetemperature(℃) |
-55-+85 |
|
Antenna WeightAntenna weight(g) |
≤ 40 |
