Personnel Locator

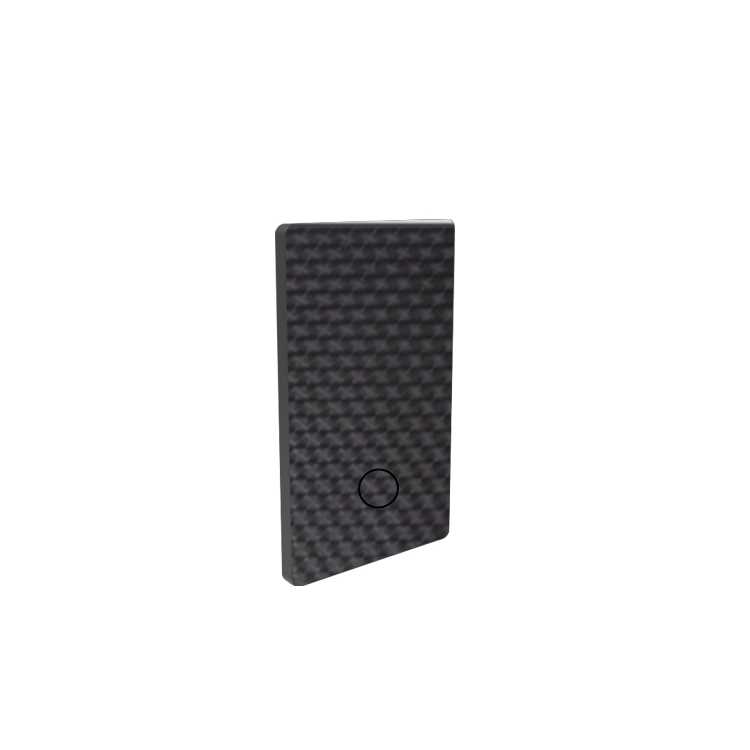

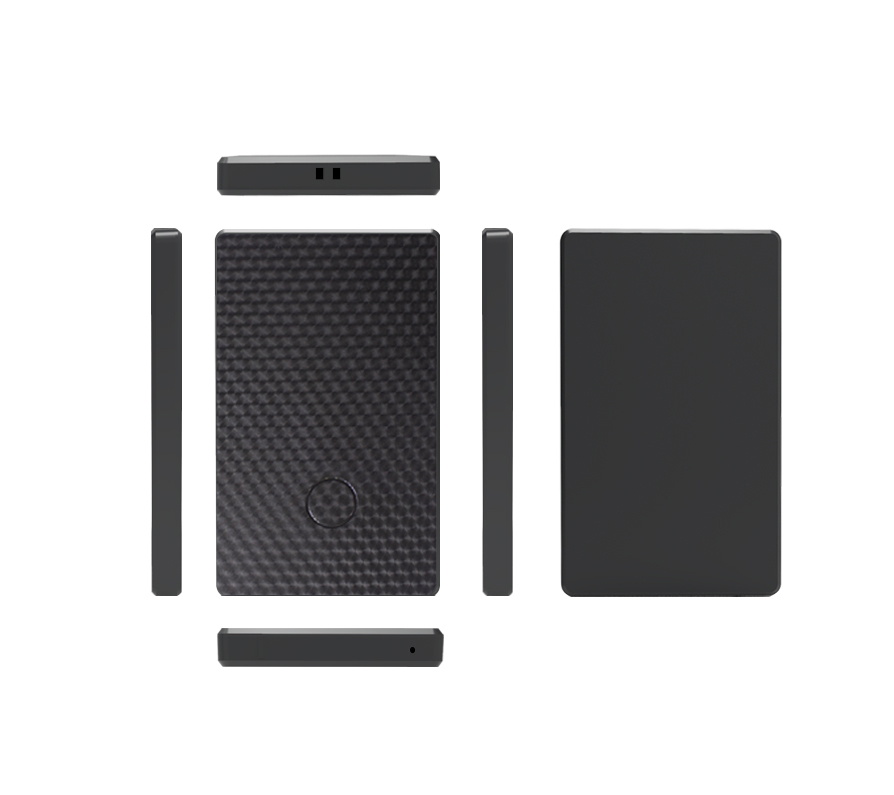

LCT800D
LCT800D card machine is a 4G full netcom wireless positioning terminal built for personnel/individuals. it integrates 4G full netcom wireless communication technology and GPS/BDS satellite navigation and positioning technology. the terminal adopts industrial-grade high-integration full-built antenna design, and the device has built-in 3-axis sensors for intelligent power-saving wake-up work. With real-time positioning, vibration alarm, emergency alarm, roll call positioning and other functions. Three modes can be set to meet various application scenarios of customers, and users can send instructions to switch working modes. With the global positioning service platform, the location of the device can be queried anytime and anywhere.
|
|
|
Specifications
|
|
Power Supply Mode
|
Battery power supply
|
|
Operating Voltage
|
DC 3.4V - 4.5V
|
|
Operating Current
|
4V/60mA average
|
|
Sleep Current
|
4V/5mA average
|
|
Built-in Battery Capacity
|
700 mAh (3.7V polymer battery)
|
|
Operating Temperature
|
-20 ℃ - 75 ℃
|
|
Storage Temperature
|
-30 ℃ - 80 ℃
|
|
Humidity
|
10%-85% RH no-condensing
|
|
Positioning Method
|
GPS+BDS
|
|
Cold Start Time
|
average of 32 seconds
|
|
Hot Start Time
|
1 second average
|
|
Tracking Sensitivity
|
-162 dBm
|
|
Frequency Range
|
B1: 1561.098±2.046 MHz
L1: 1575.42±1.023MHz
|
|
Positioning Accuracy
|
< 1.5m (CEP50)
|
|
Timing Accuracy
|
< 30ns (1σ)
|
|
Speed Measurement Accuracy
|
< 0.1m/s(1σ)
|
|
Micro USB Interface
|
all the way
|
|
SOS Button
|
all the way
|
|

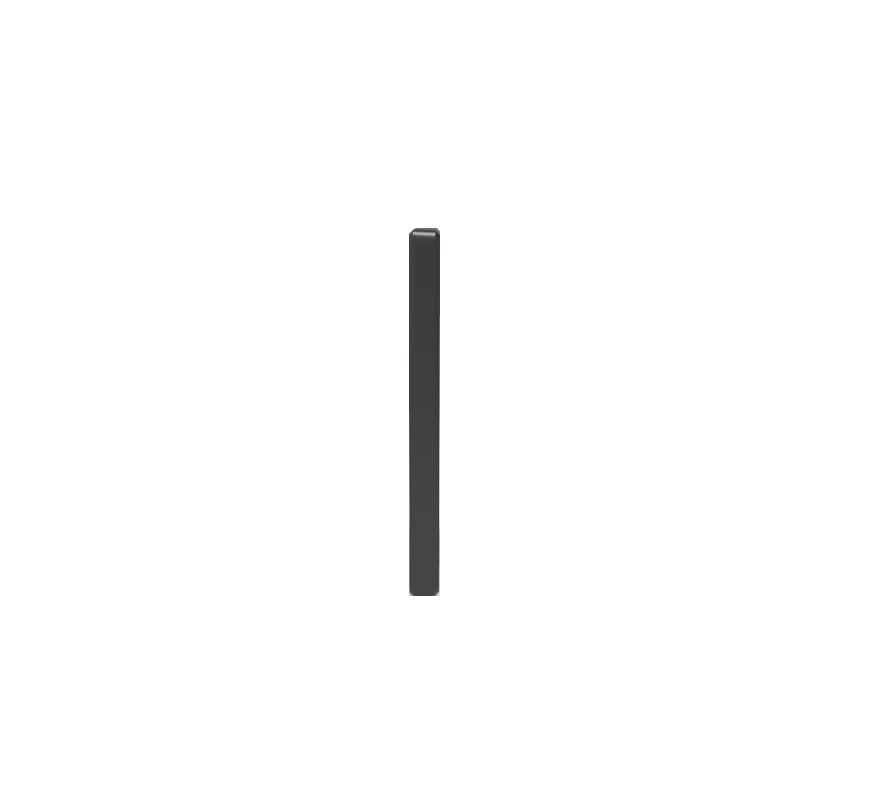

Host Size (length, width and height)
|
81.2mm * 54.2mm * 6.5mm
|
|
Shell Material
|
ABS plastic
|
|
Host Weight
|
40g
|
|
|
