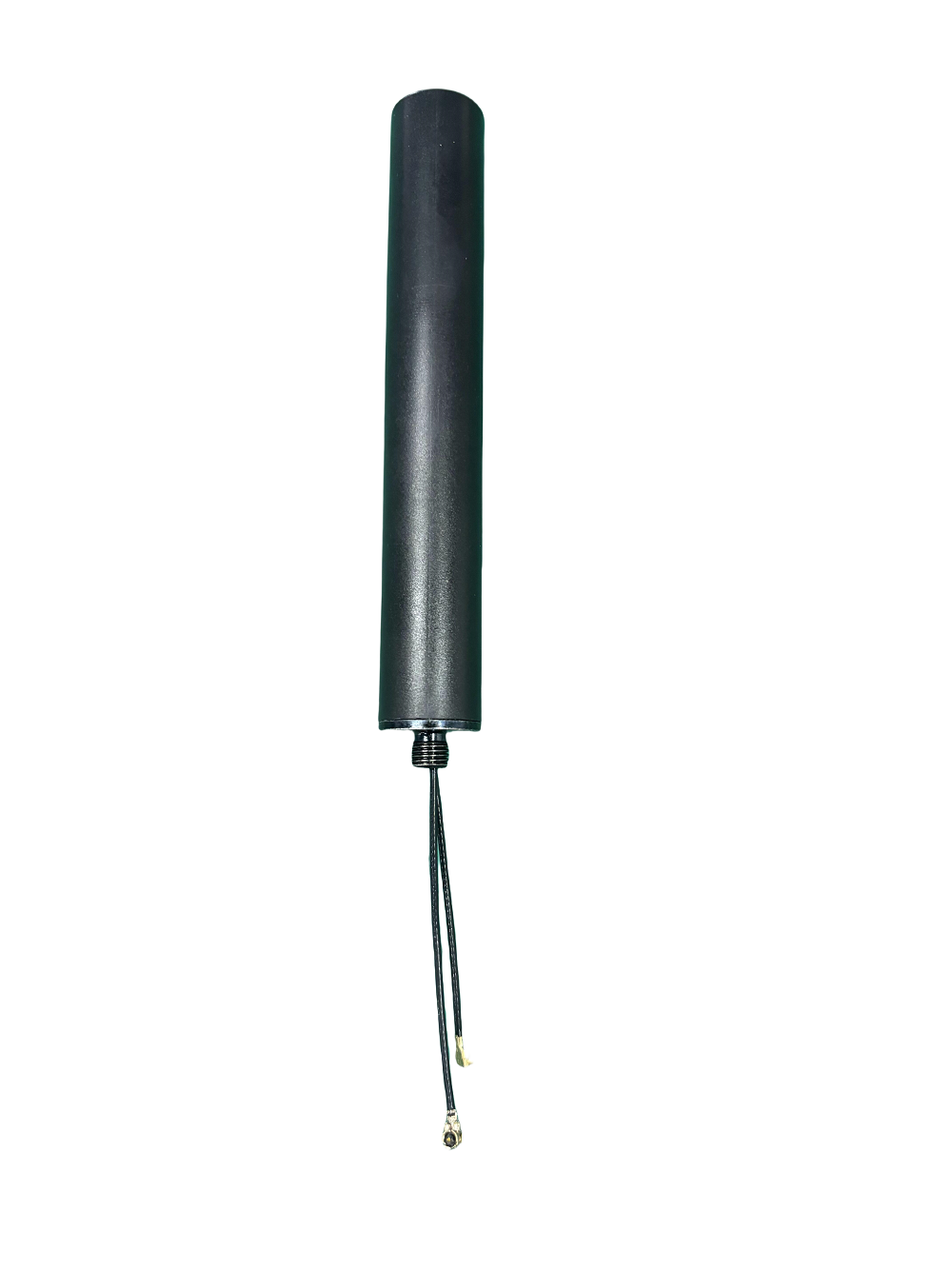

Handheld Antenna

SCE602A

SCE602A is a single-satellite dual-band handheld antenna, which has the characteristics of high gain, miniaturization, high sensitivity and high reliability, and can effectively meet the needs of users. The antenna can be used with a variety of RD receivers to transmit and receive short messages, and is widely used in emergency relief and other fields.



Specifications

Frequency Range(MHz)

BD L, S

Peak Gain(dBi)

L 1dBi
S 2.5dBi

VSWR

≤ 2.0

Antenna Axial Ratio (dB)

≤ 3.0

Polarization

L left-hand circular polarization
S right-hand circular polarization

Port Impedance(Ω)

50

Antenna Size(mm)

Φ16 × 103.8 (excluding cable length and base)

Operating Temperature(℃)

-40-+85

Storage Temperature(℃)

-40-+105

Humidity

95% no-condensing
