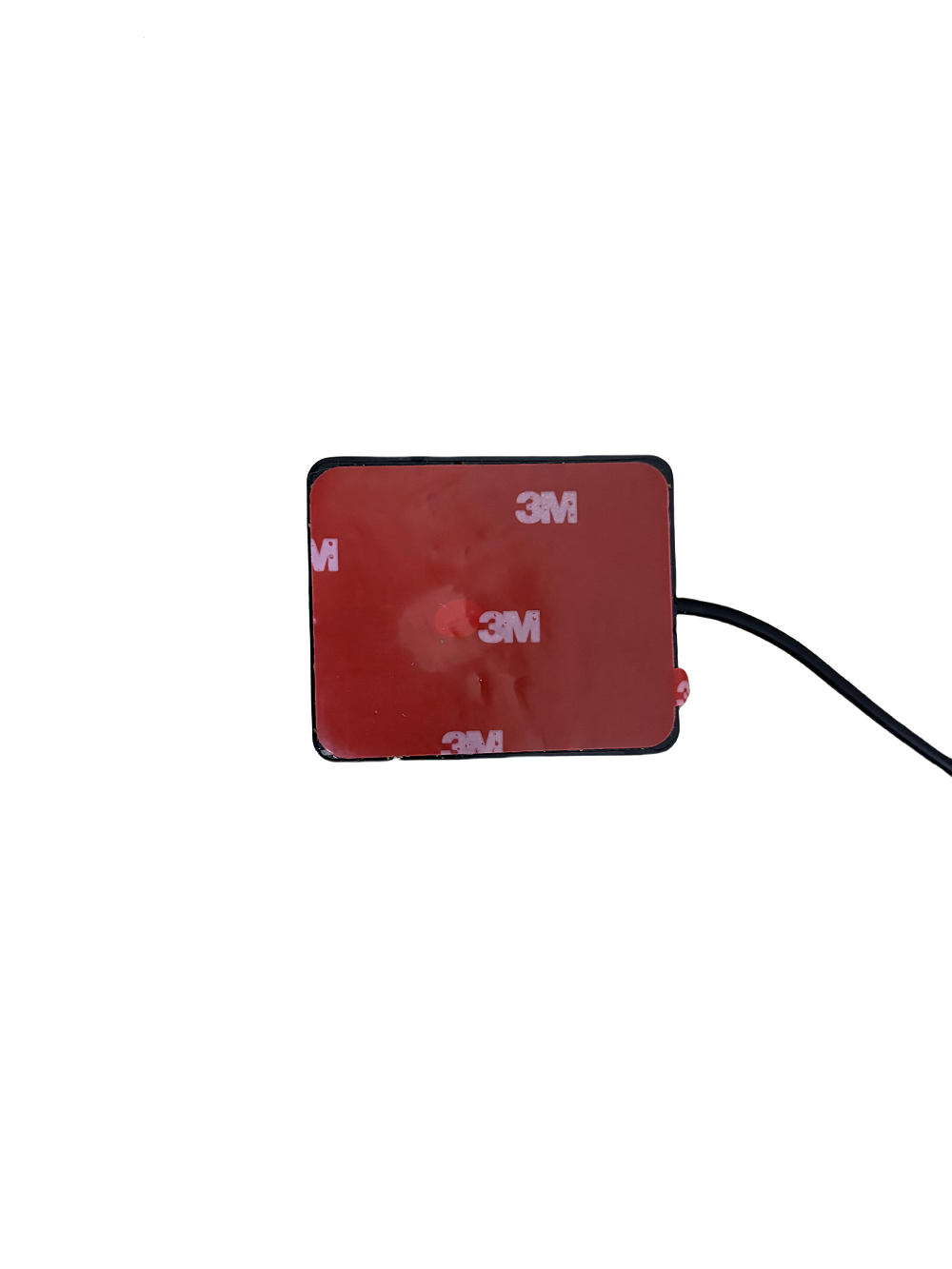

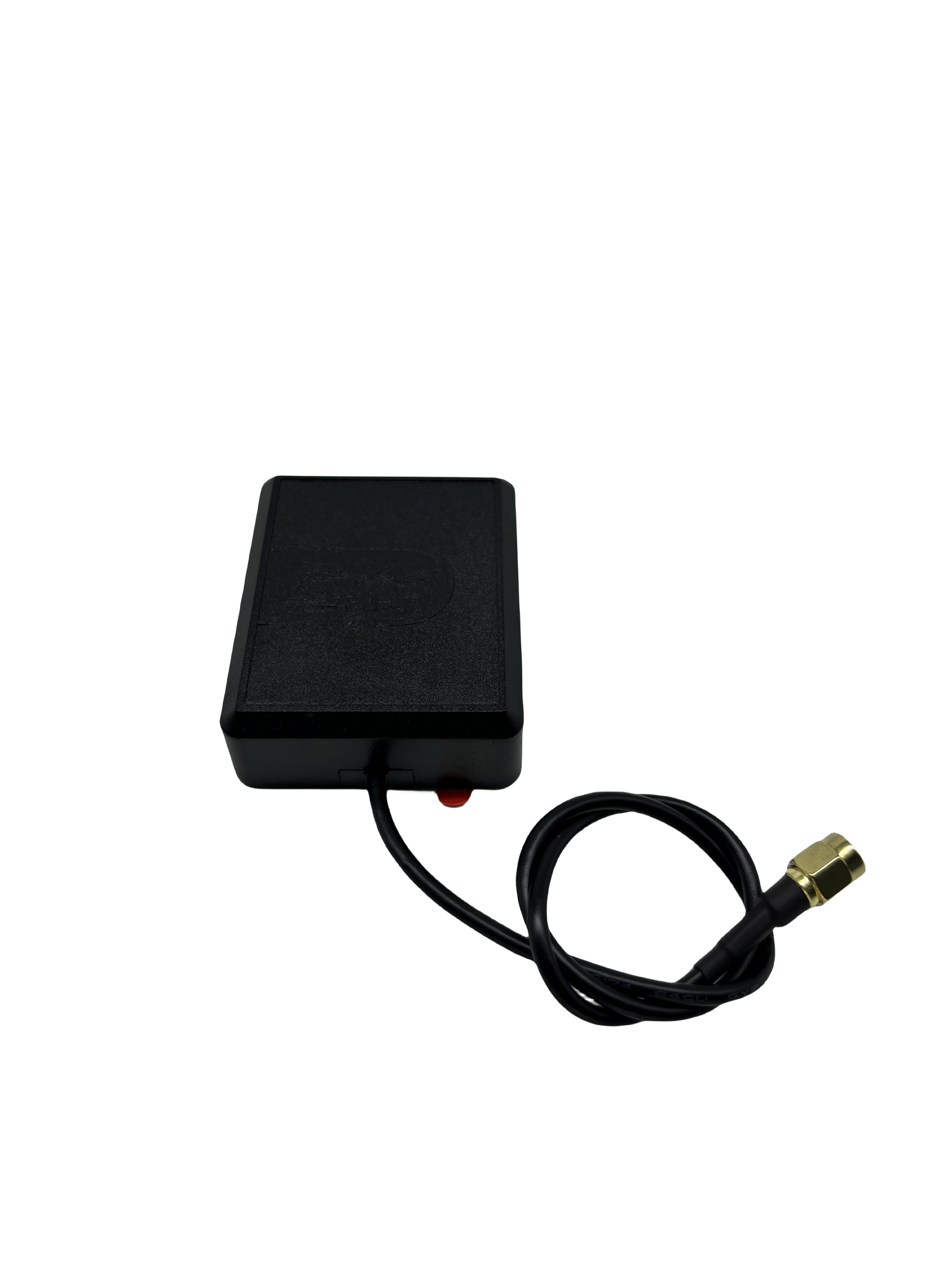

External Navigation Antenna

SCE601A

SCE601A is a dual-band external navigation antenna. The antenna has the characteristics of small size, high positioning accuracy, light weight, and convenient installation, which can effectively meet the needs of users. Can be used with a variety of receivers, widely used in car navigation, handheld terminal equipment and small RTK equipment and other fields.



Specifications

Frequency Range(MHz)

GPS L1/L5

Peak Gain(dBi)

2

Antenna Axial Ratio (dB)

≤ 13

VSWR

≤ 2.0

Polarization

Right-hand circular polarization

Port Impedance(Ω)

50

LNA Gain(dB)

26±2

Noise Figure(dB)

≤ 2.0

Operating Voltage(V)

3.3 DC

Operating Current(mA)

≤ 16

Connector Type

SMA-J

Antenna size(mm)

Φ59 × 48 × 17

Operating Temperature(℃)

-20- 80

Storage Temperature(℃)

-20- 80
